Siemens Mechanical CNC Turret Punching Machine For Sheet Metal Hole Punching
CNC punching machine application:
CNC turret punching machine is mechatronics automation equipment, it's widely used in the chassis cabinets processing, air conditioners, refrigerators, range hood, instruments and meters, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, and other sheet metal processing industries.
Machinery main details:
1. Germany Siemens System;
2. Standard 80mm Ductile Iron Thick Turret Disc;
3. Taiwan Ball Screw & Linear Guide;
4. International electrical components;
5. Secondary positioning system;
6. Well-known Standard Tools.

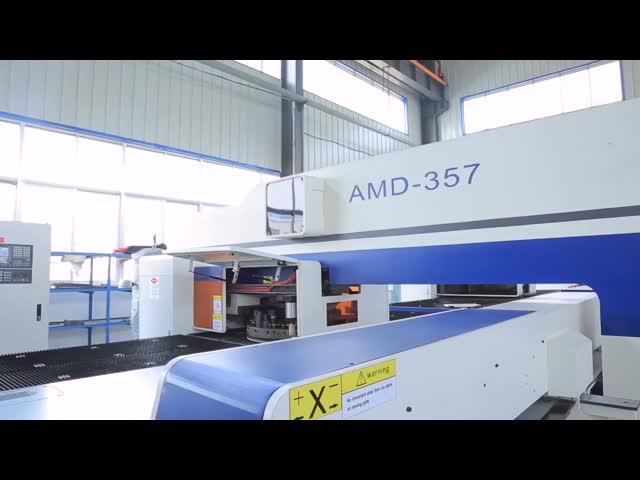

AMD-357 CNC turret punch press feature:
1. Adopts Siemens 3/4 axis CNC special system and match up digital AC servo motor to make it fast and reliable;
2. Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation;
3. With the second positioning function, can achieve without dead zone processing;
4. The transmission system use the international brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance;
5. Main pneumatic components, electric components and transmission adopt perfectly;
6. Use standards casting integrated thick turret mold disc and standards internationally general thick molds.
Main Technical Specification:
| Specification | Unit | AMD-357 | AMD-SE2510 | AMD-255/AMD-2510 | |
| Transmission mode | / | Hydraulic | Mechanical | Servo motor | Mechanical |
| Punch force | KN | 300 | 200 | 250 | |
| Power rating | KW | 20 | 11 | 30 | 11 |
| Processing sheet size | mm | 2500*1250 | |||
| Processing sheet thickness | mm | ≤6 | ≤4 | ≤3 | ≤4 |
| Max. Punch diameter | mm | Ø88.9 | |||
| Sheet moving speed | m/min | 40 | 80 | 40 | |
| Punching frequency | hpm | 600 | 300 | 900 | 300 |
| Hole accuracy | mm | ±0.1 | |||
| Number of stations in turret | No. | 16/24/32 | |||
| Turret speed | rpm | 30 | 60 | 30 | |
| Controlled axis | No. | 3/4 | 3/4 | 5 | 3/4 |
| Rotating location | No. | 0/2 | 0/2 | 1-2 | 0/2 |
| Air pressure | Mpa | ≥0.8 | |||
| Outline Dimension | mm | 4490*5300*2110 | 4910*3300*2225 | ||
| Machine Weight | T | 12 | 11 | 13 | 10 |
Notice:
According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.
1. Please tell us your metal sheet material.
2. The workpiece dimension (including length, width and thickness).
3. The information of hole shapes and hole diameter that you want to punch.
4. It's my pleasure if you can send some photos or drawings of your products for our reference.
Based on these details information, the detailed technical proposals will be sent to you for reference.
